BALL VALVES
All ball valves products are suitable for the use with fluids proper to the Group II, as defined in Article 9, Section 2.2 of Directive 97/23/EC, that is to say not toxic, not inflammable and not explosive fluids; to this macro Group II also belong the refrigerant fluids listed and classified L1 in Annex E of standard EN 378-1:2011.
CONFORMITY DECLARATIONS AND CERTIFICATIONS

Low pressure Ball Valves
Medium Pressure Ball Valves
High pressure Ball Valves

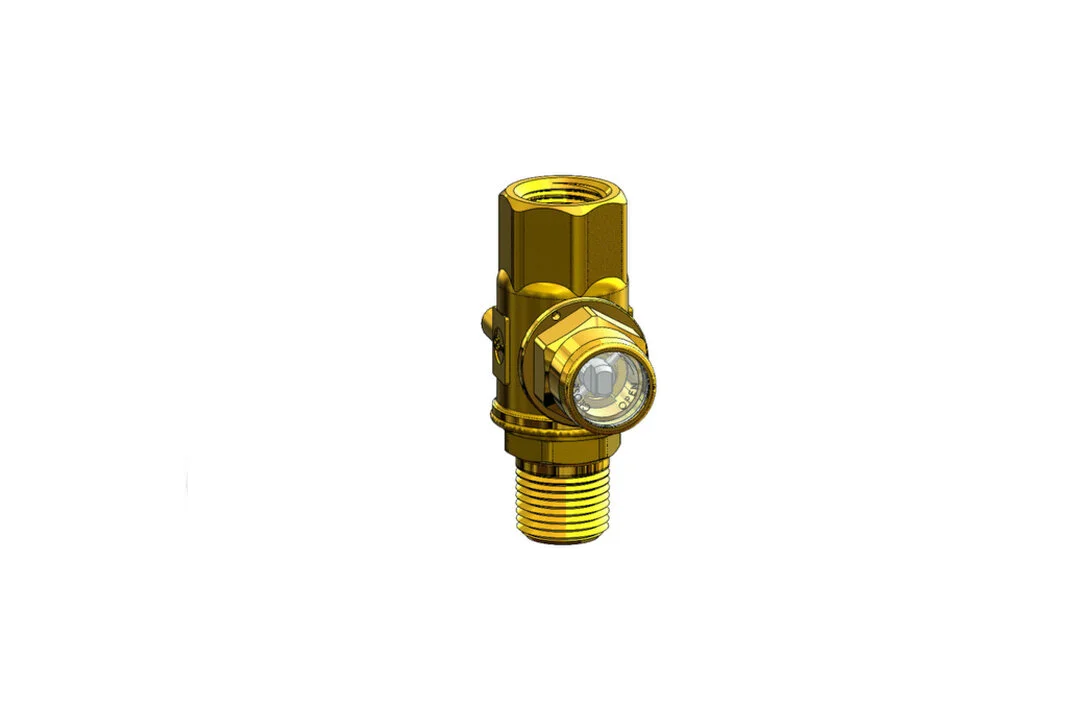

NPT Ball Valves

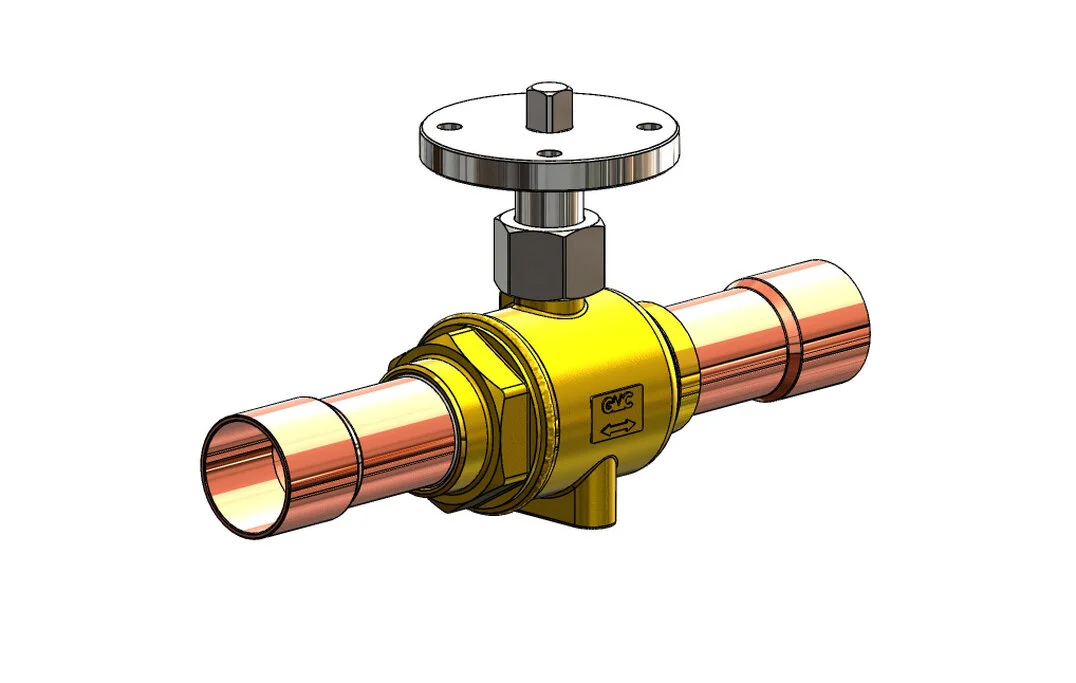

Motorized High pressure Ball Valves
3 Way Motorized Ball Valves

CONFORMITY DECLARATIONS AND CERTIFICATIONS

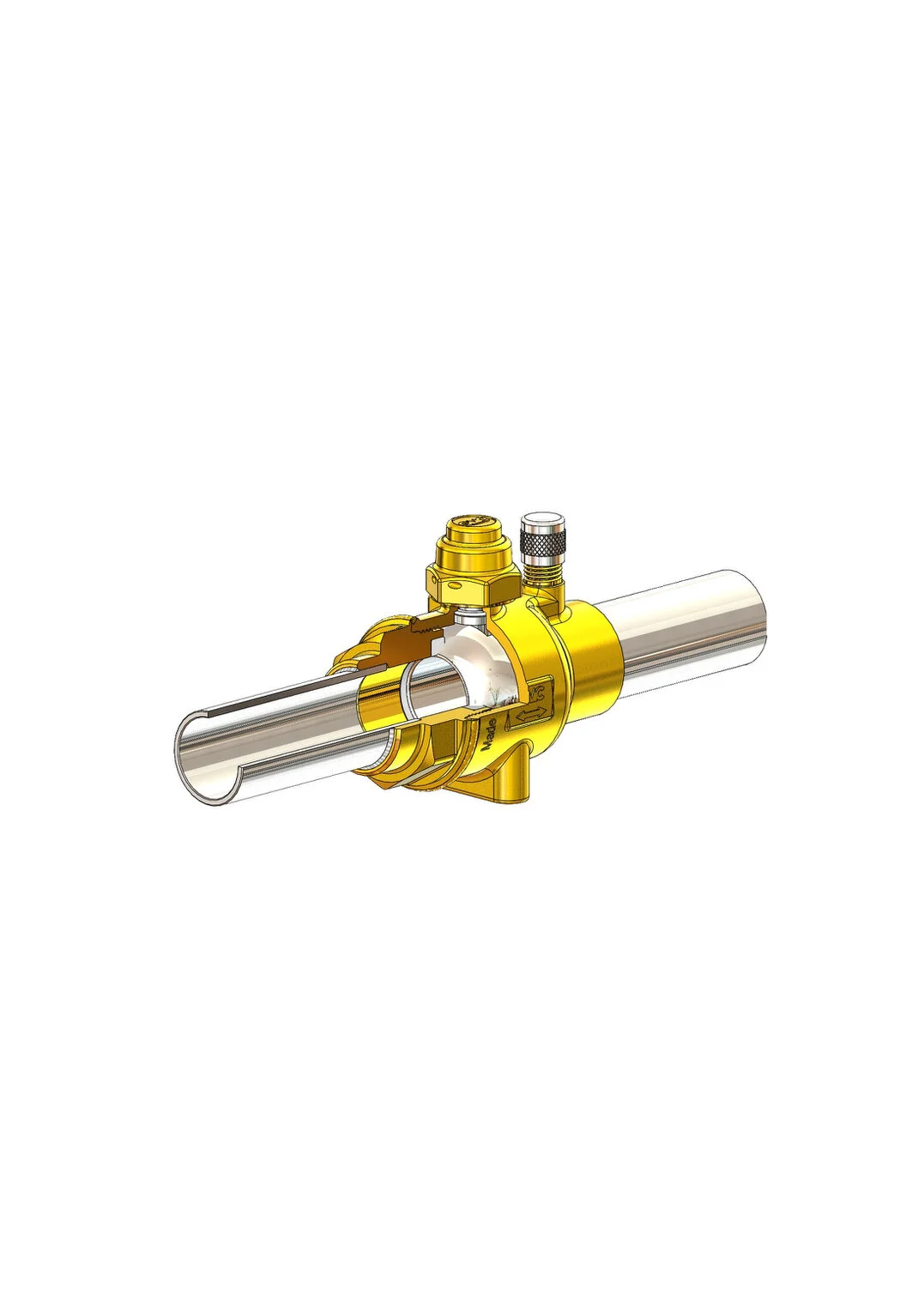

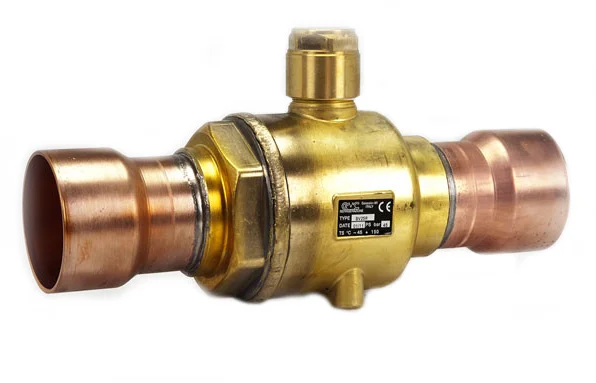

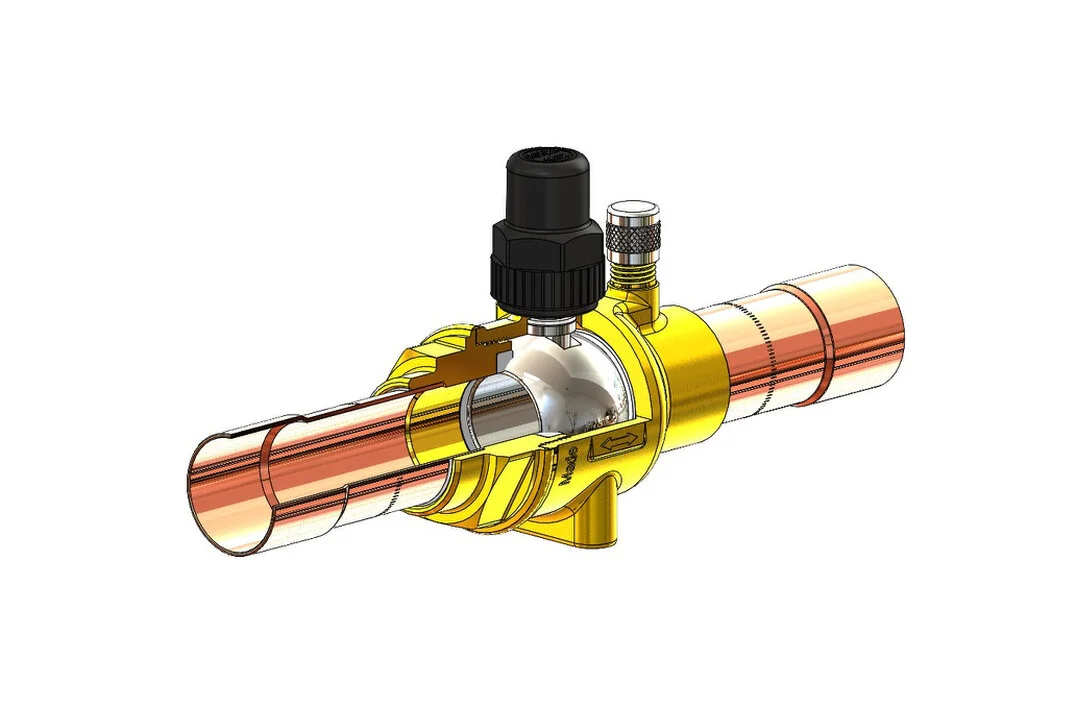

LOW - MEDIUM - HIGH PRESSURE BALL VALVES
All ball valves products are suitable for the use with fluids proper to the Group II, as defined in Article 9, Section 2.2 of Directive 97/23/EC, that is to say not toxic, not inflammable and not explosive fluids; to this macro Group II belongs also the refrigerant fluids listed and classified L1 in Annex E of standard EN 378-1:2011.
The body and chromium plated ball are manufactured in hot forged brass EN 12420-CW617. The solder connections are made by K65 copper tube, perfect for high pressure application and the gaskets of steel spindle are made by EPDM, perfectly compatible with CO2 application
Temperature Range : -45° +155° C.
Maximal Working Pressure : 45 - 62 - 120 Bar
Suitable to be used with all Freon gases and R744 applications
Ball Valves

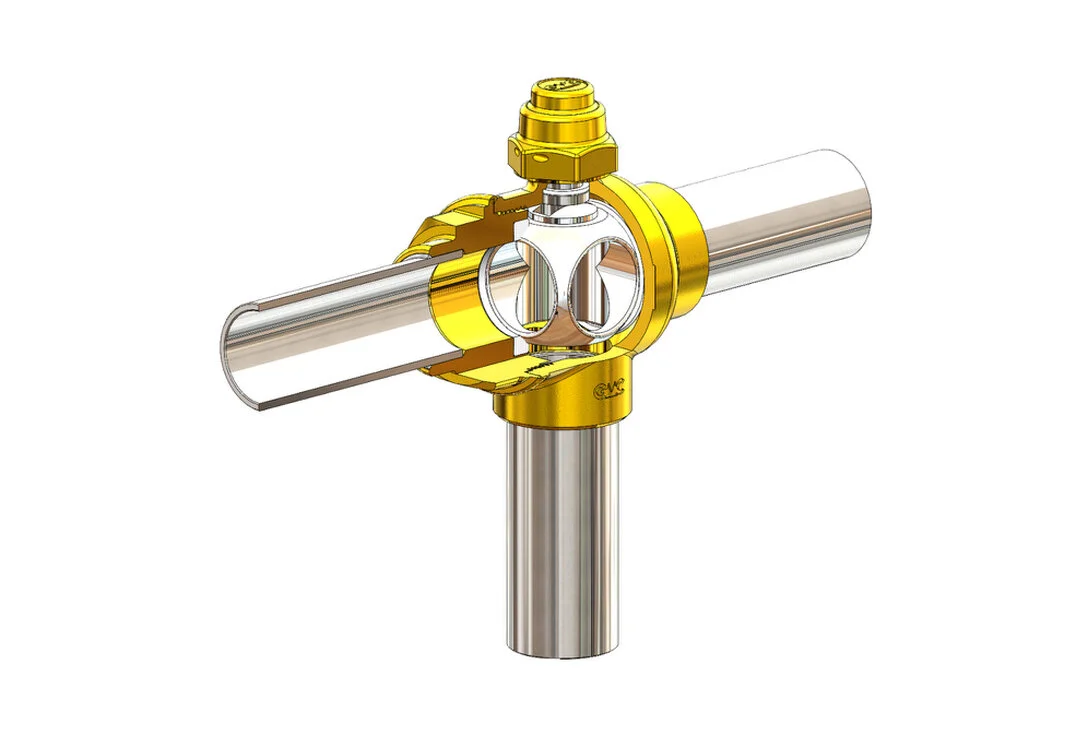

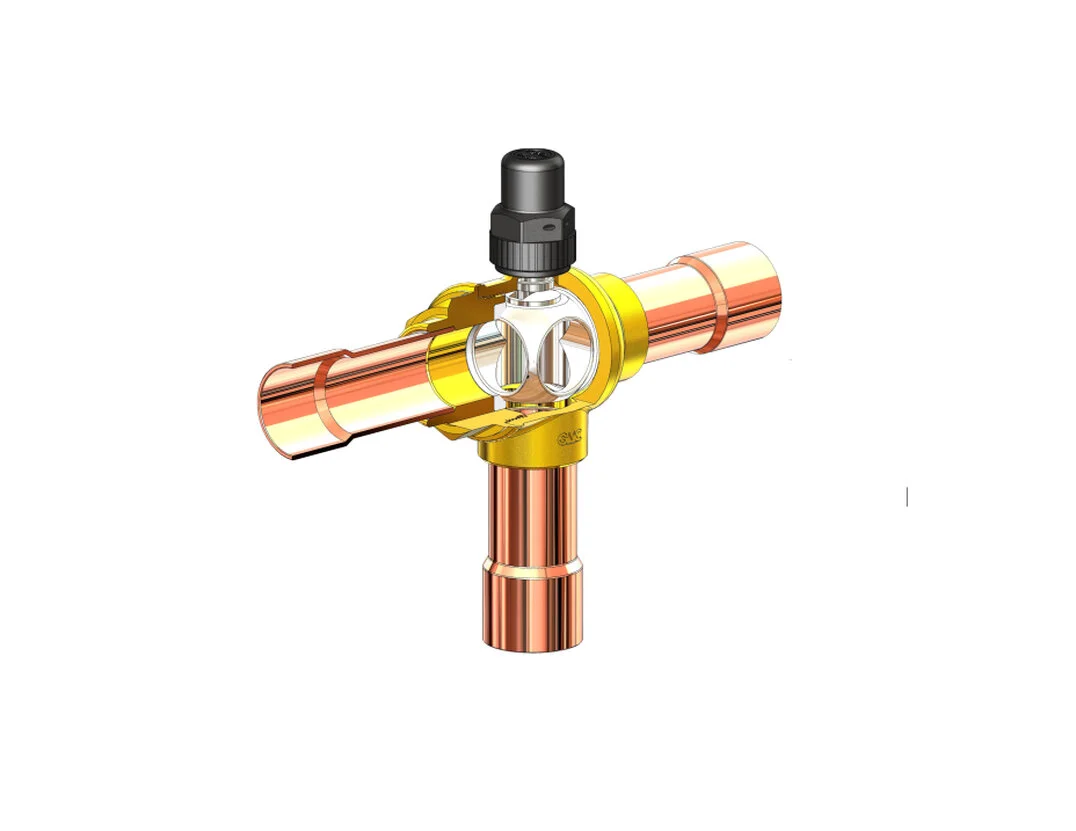

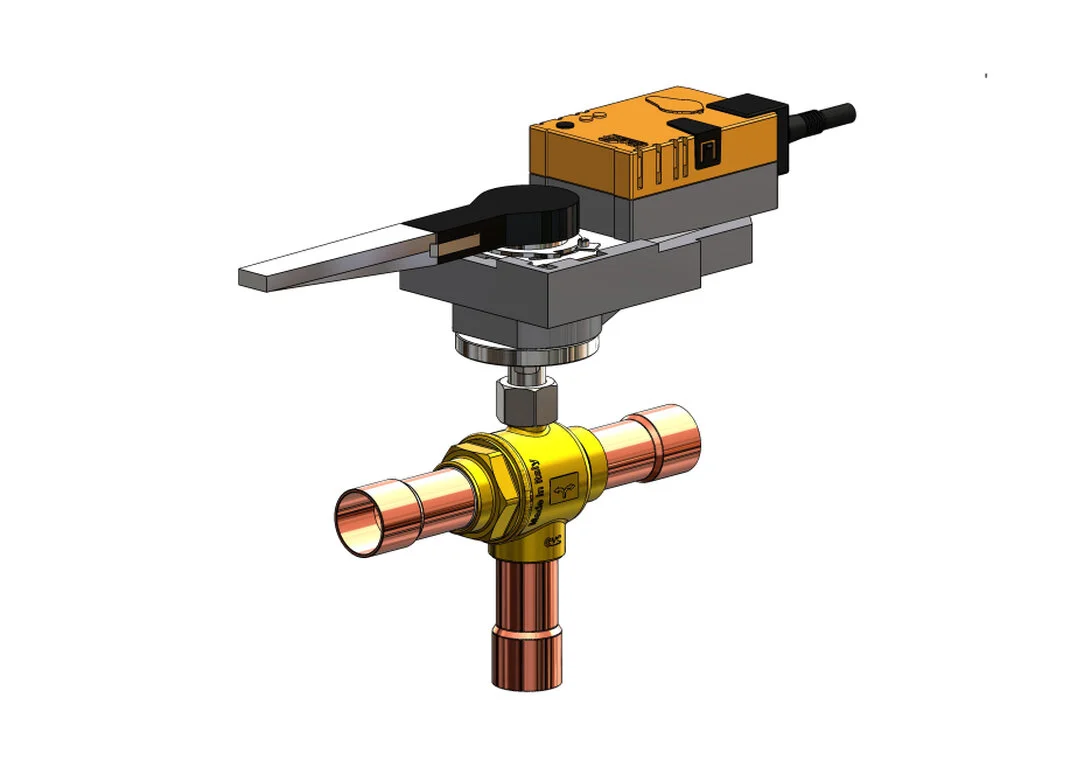

3 WAY MOTORIZED BALL VALVES
The Three way ball valves are classified “Pressure accessories” in the sense of the Directive PED 2014/68/EU, Article 2, paragraph 5 and are subject of Article 4, paragraph 1, letter c, of the Directive.
All the product range is suitable for use with refrigerant R744 (CO2) classified in Article 13, paragraph 1, letter b, of Directive PED 2014/68/EU as part of Group 2, therefore not toxic, not inflammable and not explosive fluid and indicated in A1 Group of Annex E of standard EN 378-1.
The Three way ball valve allows to direct the flow from the central connection to the two longitudinal ones.
Temperature Range : -45° / +150° C.
Maximal Working Pressure : 120 Bar
Suitable to be used with R744 applications
Possibility to connect with different rotary electric actuators

3 way ball valves ABR

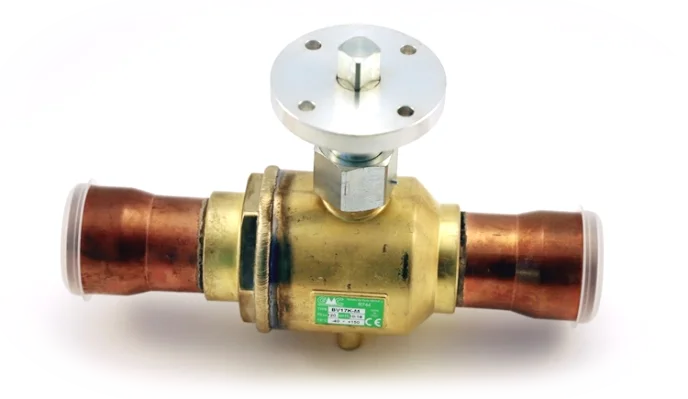

BIFLOW MOTORIZED BALL VALVES
The bi flow ball valves are classified “Pressure accessories” in the sense of the Directive PED 2014/68/EU, Article 2, paragraph 5 and are subject of Article 4, paragraph 1, letter c, of the Directive.
All the product range is suitable for use with refrigerant R744 (CO2) classified in Article 13, paragraph 1, letter b, of Directive PED 2014/68/EU as part of Group 2, therefore not toxic, not inflammable and not explosive fluid and indicated in A1 Group of Annex E of standard EN 378-1.
Temperature Range : -45° / +150° C.
Maximal Working Pressure : 120 Bar
Suitable to be used with R744 applications
Possibility to connect with different rotary electric actuators
2 way biflow motorized ball valves ABR
Here below you can find and download technical details of all our products: Click an the related link and save to your pc
Ball Valves from 6 mm (1/4) to 80 mm (3.1/8) - 45 bar
Ball Valves with access valve from 6 mm (1/4) to 80 mm (3.1/8) - 45 bar
Ball Valves from 1/4 to  2.1/8 - 120 bar - K65 connection
Ball Valves from 10 mm to 42 mm  - 120 bar - stainless steel connections
3 way Ball Valves from 7/8 to 2.1/8 - 120 bar K65 connection
3 way Ball Valves from 22 mm to 42 mm - 120 bar - stainless steel connections
Motorized Ball Valves: Ball valves from 7/8 to 2.1/8 - 120 bar - K65 connections with kit for actuator
Motorized Ball Valves: Ball valves from 22 mm to 42 mm - 120 bar - Stainless steel connections with kit for actuator
3 Way Motorized Ball Valves: Ball valves from 7/8 to 2.1/8 - 120 bar - K65 connections with kit for actuator
3 Way Motorized Ball Valves: Ball valves from 22 mm to 42 mm - 120 bar - Stainless steel connections with kit for actuator
Actuator Kit Kit for connection ball valves and actuator
