NORMALLY CLOSED SOLENOID VALVES

The solenoid valves are considered “pressure accessories” as defined in Article 2, paragraph 5, of the PED Directive 2014/68/EU and are subject of Article 4, paragraph 1, letter C of this Directive.
The entire range of production includes normally closed valves, that is, when energize the solenoid the valve opens.
There are two types of valves, direct acting and diaphragm pilot operated; in the first type opening and the closing of the orifice passage is obtained directly by the plunger. In the diaphragm pilot operated, the plunger is only directed to open the pilot hole of the membrane, which closes the orifice and needs a minimum differential pressure, between the inlet and outlet of the valve, in order to lift up the mebrane and allow the passage of the fluid.

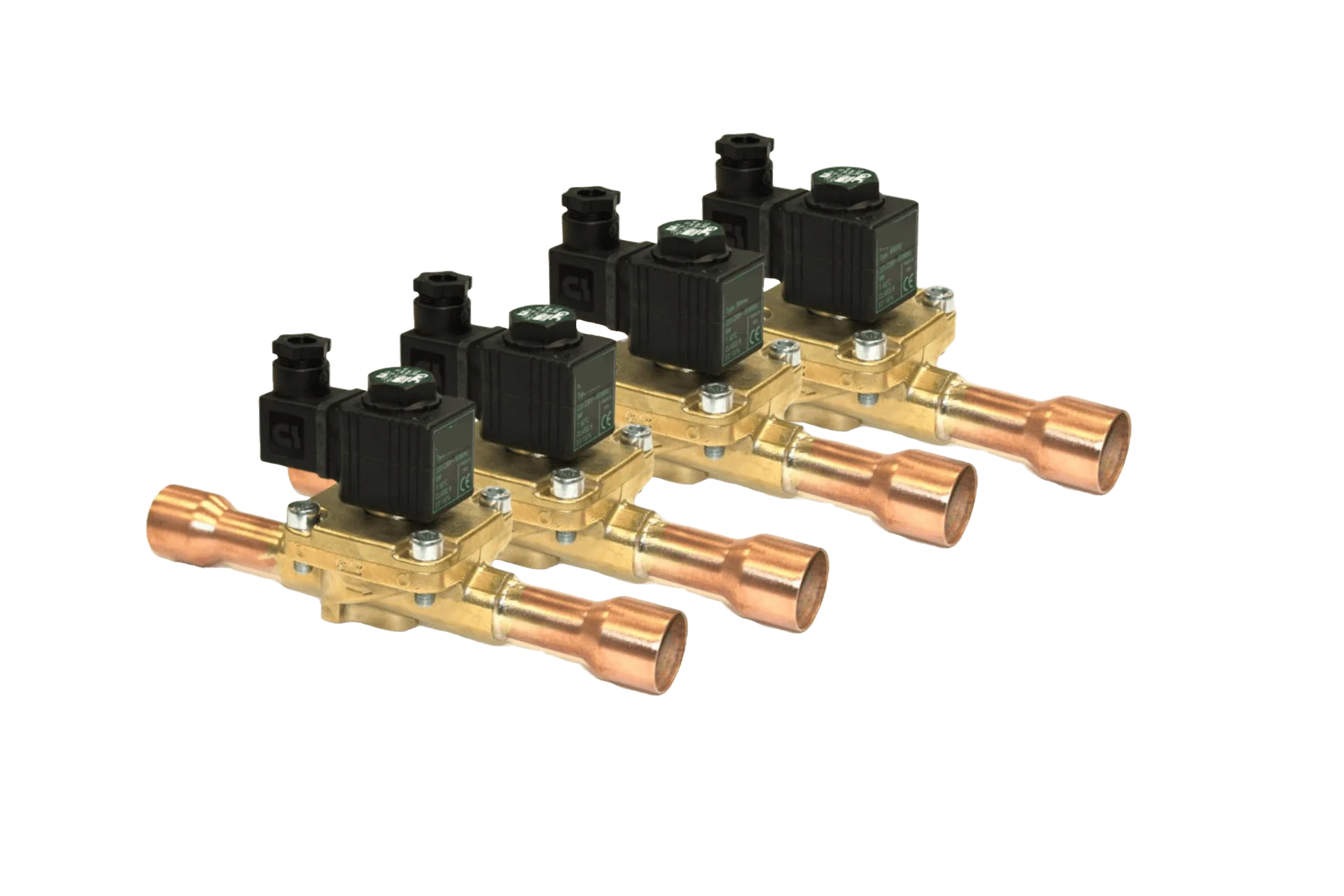

solenoid valve ABR
CONFORMITY DECLARATIONS AND CERTIFICATIONS

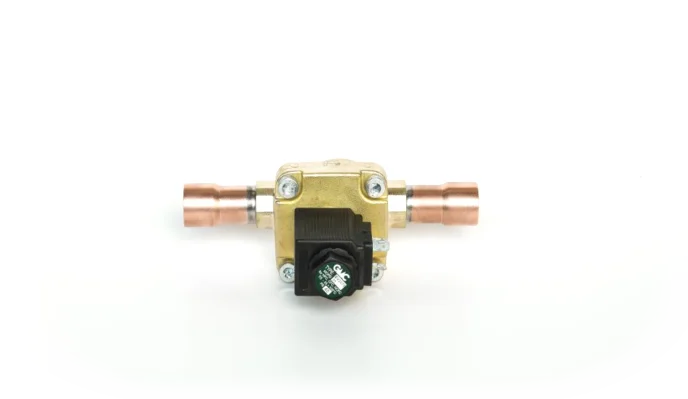

solenoid valve ABR 2
NORMALLY CLOSED SOLENOID VALVES - DIRECT ACTING
The solenoid valves are considered “pressure accessories” as defined in Article 2, paragraph 5, of the PED Directive 2014/68/EU and are subject of Article 4, paragraph 1, letter C of this Directive. The entire range is designed for use with fluids classified by artcicle 13, paragraph 1, letter b of the PED 2014/68/EU as belonging to group 2, or not toxic fluids, not flammable and not explosive; this macro Group also includes the refrigerant fluids belonging to Group A1 classification according to the standard EN-378-1 and listed to the appendix E of mentioned standard. The entire range of production includes normally closed valves, that is, when energize the solenoid the valve opens.

There are two types of valves, direct acting and diaphragm pilot operated; in the first type opening and the closing of the orifice passage is obtained directly by the plunger. In the diaphragm pilot operated, the plunger is only directed to open the pilot hole of the membrane, which closes the orifice and needs a minimum differential pressure, between the inlet and outlet of the valve, in order to lift up the mebrane and allow the passage of the fluid.


solenoid valve ABR 3
NORMALLY CLOSED SOLENOID VALVES - DIAPHRAGM PILOT OPERATED
The solenoid valves are considered “pressure accessories” as defined in Article 2, paragraph 5, of the PED Directive 2014/68/EU and are subject of Article 4, paragraph 1, letter C of this Directive. The entire range is designed for use with fluids classified by artcicle 13, paragraph 1, letter b of the PED 2014/68/EU as belonging to group 2, or not toxic fluids, not flammable and not explosive; this macro Group also includes the refrigerant fluids belonging to Group A1 classification according to the standard EN-378-1 and listed to the appendix E of mentioned standard. The entire range of production includes normally closed valves, that is, when energize the solenoid the valve opens.

There are two types of valves, direct acting and diaphragm pilot operated; in the first type opening and the closing of the orifice passage is obtained directly by the plunger. In the diaphragm pilot operated, the plunger is only directed to open the pilot hole of the membrane, which closes the orifice and needs a minimum differential pressure, between the inlet and outlet of the valve, in order to lift up the mebrane and allow the passage of the fluid.

solenoid valve ABR 4
COILS
The KMA series coils shall powered in alternative current, while KMD with direct current. Coils are applicable only with normally closed valves. The connection terminals consit of three fast-on attacks, two from the line and one ground, designed to be coupled perfectly with DIN43650 connector. All solenoids are in accordance with the Low voltage Directive 2006/95/EC and the electormagnetic Compatibility Directive 2004/108/CE.
Normaly closed solenoid valves - 45 bar
