Safety valves
Safety valve is manufactured in several models to cover a big utilization in the refrigeration market.
It can be used with Freon’s refrigerant, R744 up to 150 Bar rated pressures and Ammonia.
Product is tested and certified following the most important safety levels and safety tests present in the market today.
Valves are manufactured as quick open valve and have a direct spring.
They present two different discharge types: free or piped and are suitable for a lot of use or common application.
The safety valves are approved and comply with the requirements of the European Directive 97/23/EC (PED), ASME VII Div. I , CANADIAN REG.CRN,  GOST-R.
Testing can be performed on request by the most prestigious authorities such as:
TÜV, RINA, Bureau Veritas, ABS, Lloyd Register.
safety valves 1 ABR
CONFORMITY DECLARATIONS AND CERTIFICATIONS



CERTIFICATES

CONFORMITY DECLARATION
ASME**
CE
X
ATEX
X
EAC
X
CRN ABSA
X
CRN ACIC
X
CRN QUEBEC
X
CRN TSSA
X
safety valves ABR

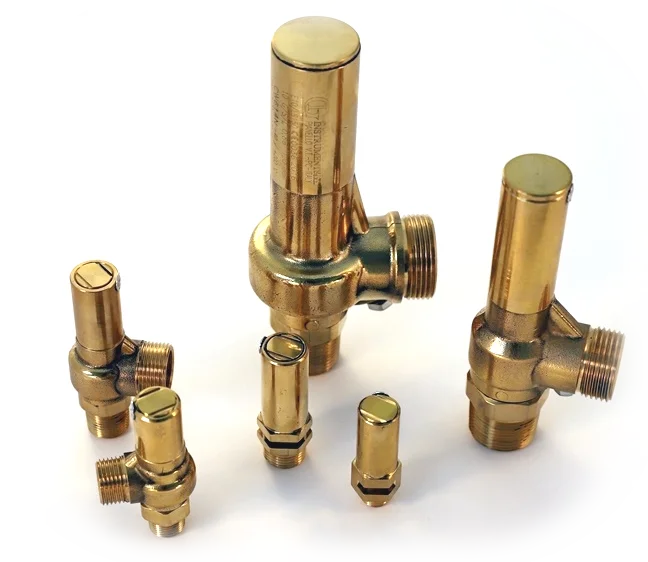

Low/ Medium Pressure Safety Valves
A complete series of piped and free outlet safety valves, hole sizes from 7 to 25 mm, calibrated pressures up to 60 bar, suitable for use all refrigerant gases including Carbon Dioxide.
All parts are manufactured in brass in UNI EN 12164 CW614N
Steel alloy spring UNI EN 10270-I
Seal Seats:   PTFE (-196°C   + 250°C)
Certified CE IV
Pressure range 0,51 - 60 bar


safety valves 2 ABR

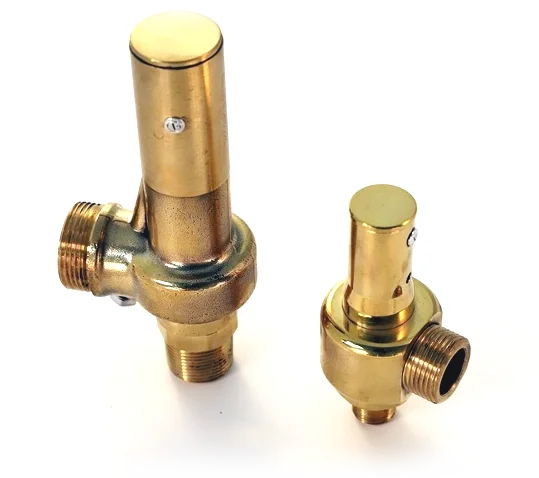

High Pressure Safety Valves

A complete series of piped and free outlet safety valves, hole sizes from 5 to 14 mm, calibrated pressures up to 300 bar, suitable for use with Carbon Dioxide.

All parts are manufactured in brass in UNI EN 12164 CW614N
Steel alloy spring UNI EN 10270-I
Seal Seats:   PTFE (-196°C   + 250°C) up to 100 bar
Seal Seats:   PEEK - VESPEL (-196°C   + 200°C) from 100 to 300 bar
Certified CE IV
Pressure range 0,51 - 300 bar

safety valves 3 ABR

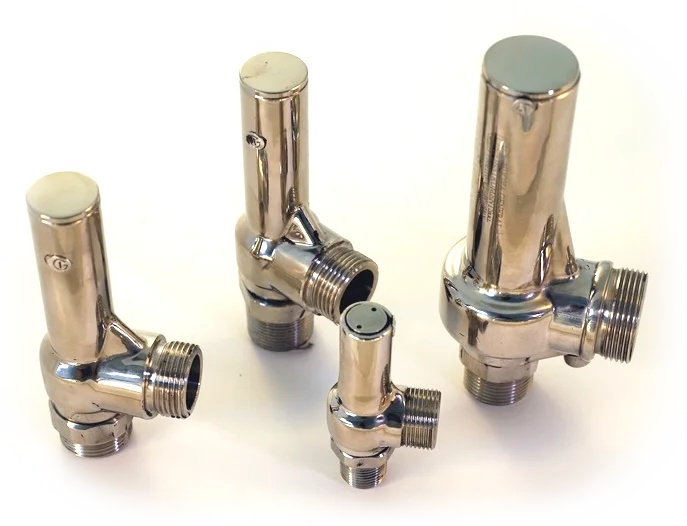

Low/ Medium Pressure Safety Valves (NH3)

A complete series of piped outlet safety valves, hole sizes from 7 to 25 mm, calibrated pressures up to 60 bar, suitable for use with ammonia (NH3).

All parts are manufactured in stainless steel UNI EN 10088 1.4404
Steel alloy spring SA479 S31603
Seal Seats:   PTFE (-196°C  + 250°C)
Seal Seats:   METAL (-196°C  + 450°C)
Certified CE IV
Pressure range 0,51 - 60 bar
Low/ Medium Pressure Changeover Valves
A complete series of changeover valves up to 60 bar, suitable for use all refrigerant gases including Carbon Dioxide.

All parts are manufactured in stainless steel
Seats:   PTFE
Certified CE
Pressure range 0,51 - 60 bar
High Pressure Changeover Valves
A complete series of changeover valves up to 120 bar, suitable for use with Carbon Dioxide.

All parts are manufactured in steel
Seats:  Steel
All valves follow and are conformed with European directive 97/23/ CE (PED)
Pressure range 0,51 - 120 bar
safety valves 4 ABR
NPT Ball Valves

A complete series of NPT ball valves up to 45 bar, suitable for use with pressure relief valves

All parts are manufactured in brass
All valves follow and are conformed with European directive 97/23/ CE (PED)
Max working pressure range 45 bar
Safety Valves safety valves free outlet discharge in atmophere - pressure range 0,51 - 60 bar - suitable for all Freon's
Safety Valves safety valves piped outlet discharge - pressure range 0,51 - 60 bar - suitable for all Freon's
Safety Valves safety valves free outlet discharge in atmophere - pressure range 0,51 - 100 bar - suitable for R744
Safety Valves safety valves piped outlet discharge - pressure range 0,51 - 150 bar - suitable for R744
Safety Valves safety valves piped outlet discharge - pressure range 0,51 - 300 bar - suitable for R744
Safety Valves safety valves in stainless steel piped outlet discharge - pressure range 0,51 - 60 bar - suitable for Ammonia (NH3)
NPT Valves Npt Valves for safety valves
