SIGHT GLASSES AND MOISTURE LIQUID INDICATOR
The indicators are classified “Pressure accessories” in the sense of the Directive PED 2014/68/EU, Article 2, paragraph 5 and are subject of Article 4, paragraph 1, letter c, of the same Directive. All the product range is suitable for use with fluids proper to the Group 2, as defined in Article 13, paragraph 1, letter b, of Directive PED 2014/68/EU, therefore not toxic, not inflammable and not explosive fluids; to this macro Group belongs also the refrigerant fluids listed and classified in A1 Group of Annex E of standard EN 378-1. Saddle type indicators are excluded from the scope of Directive 2014/68/EU as piping components.

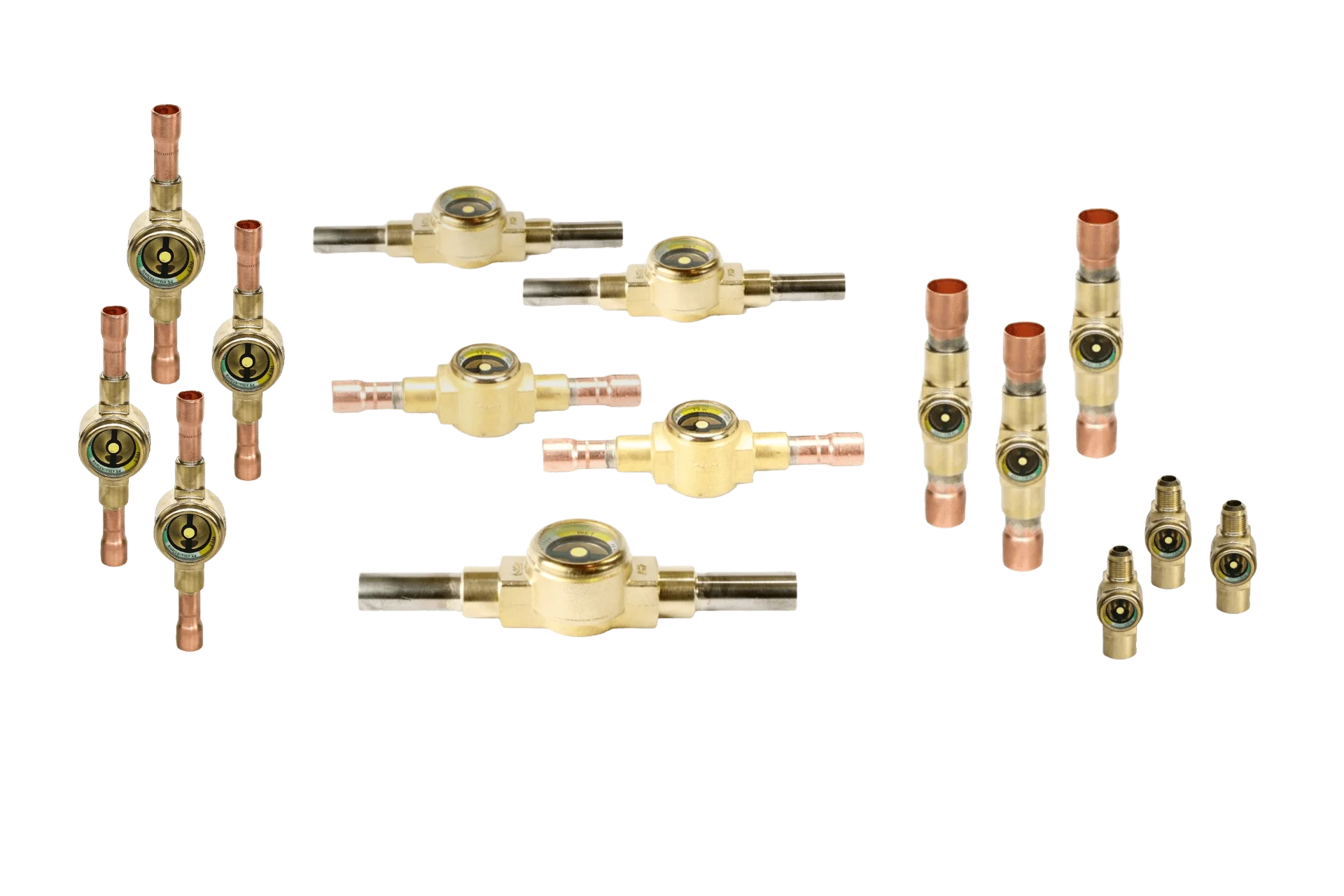

Sight Glasses and Moisture Liquid Indicators abr
CONFORMITY DECLARATIONS AND CERTIFICATIONS

CONFORMITY DECLARATIONS AND CERTIFICATIONS

CONFORMITY DECLARATIONS AND CERTIFICATIONS

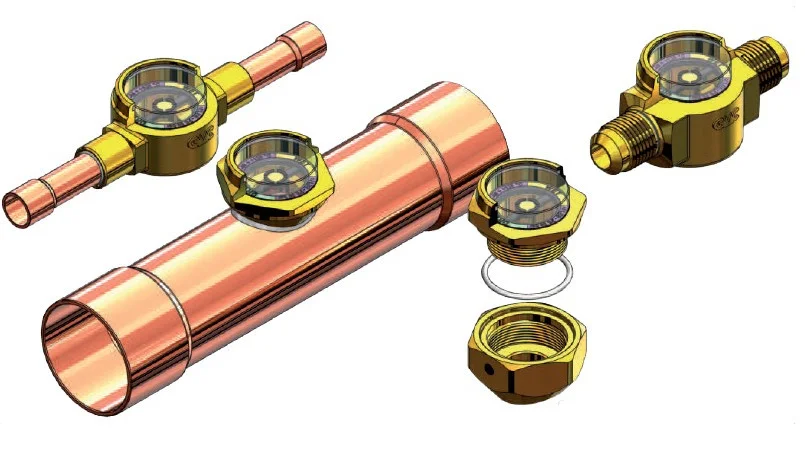

Sight Glasses
All indicators product range is suitable for use with fluids proper to the Group II, as defined in Article 9, Section 2.2 of Directive 97/23/EC, therefore not toxic, not inflammable and not explosive fluids; to this macro Group II belongs also the refrigerant fluids listed and classified L1 in Annex E of standard EN 378-1:2011.
Construction:  Moisture – liquid indicators are manufactured with the glass lens which has been directly embedded onto the hot forged brass body EN 12420 – CW 617N. This construction reduces the points of splice between components in order to hesitate possible refrigerant leaks.

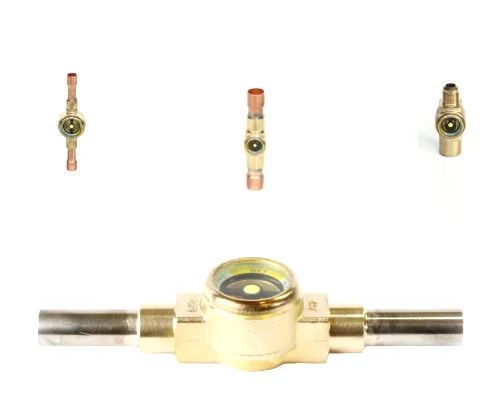

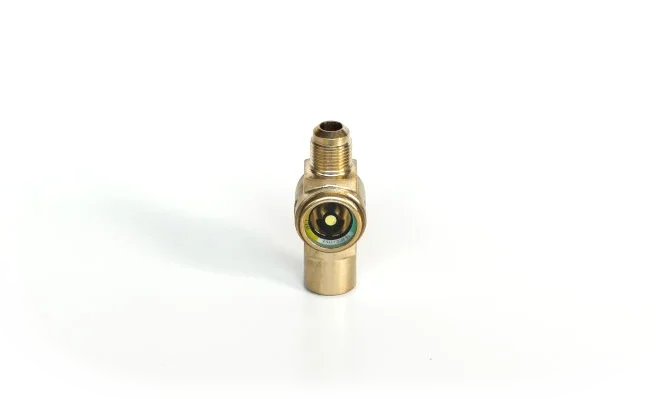

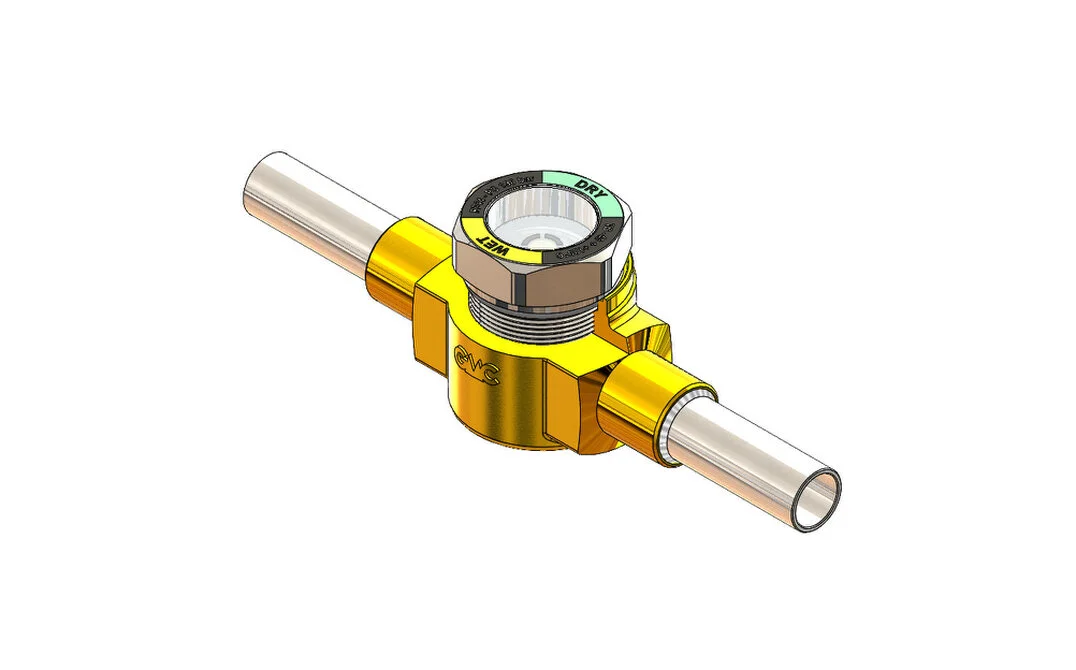

Moisture Indicators
All indicators product range is suitable for use with fluids proper to the Group II, as defined in Article 9, Section 2.2 of Directive 97/23/EC, therefore not toxic, not inflammable and not explosive fluids; to this macro Group II belongs also the refrigerant fluids listed and classified L1 in Annex E of standard EN 378-1:2011.
Construction:  Moisture – liquid indicators are manufactured with the glass lens which has been directly embedded onto the hot forged brass body EN 12420 – CW 617N. This construction reduces the points of splice between components in order to hesitate possible refrigerant leaks.

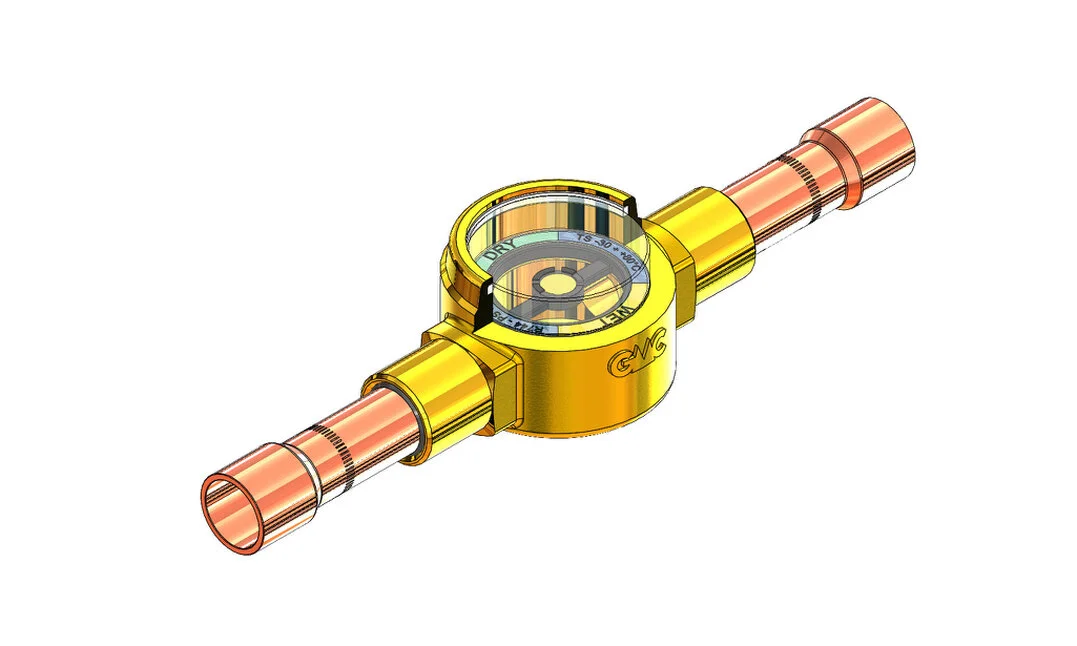

Moisture Indicators 62 bar
All indicators product range is suitable for use with fluid  R744 and  proper to the Group II, as defined in Article 9, Section 2.2 of Directive 97/23/EC, therefore not toxic, not inflammable and not explosive fluids; to this macro Group II belongs also the refrigerant fluids listed and classified L1 in Annex E of standard EN 378-1:2011 for subcritical and trans critical up to 70 euro.
Construction:  Moisture – liquid indicators are manufactured with the glass lens which has been directly embedded onto the hot forged brass body EN 12420 – CW 617N. This construction reduces the points of splice between components in order to hesitate possible refrigerant leaks.
Sight glass Abr Components
CERTIFICATION

Sight Glass and moisture liquid indicator 140 bar

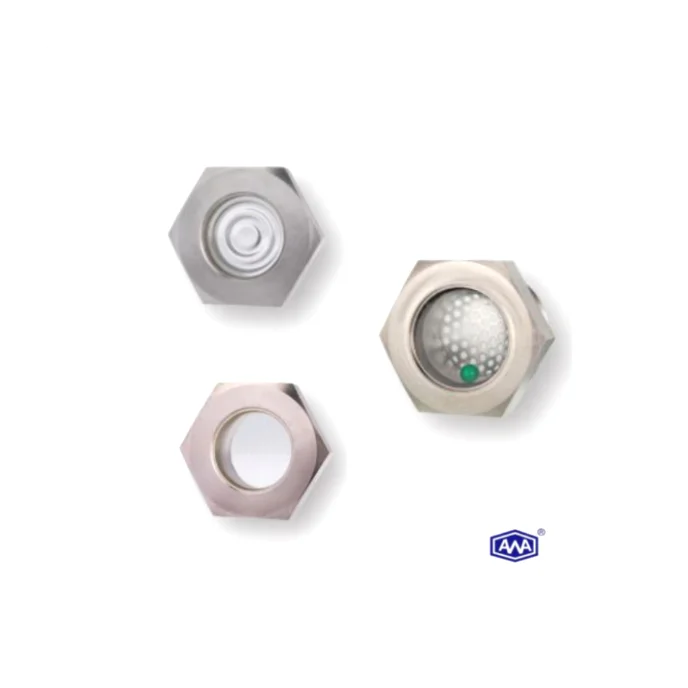

AWA sight glasses come with screwed, welded, soldered and Rotalock connections of different versions. Our fittings and adapters are used to join dissimilar connections. It is thus possible to easily charge refrigeration systems of different types – by using our service valves.
Sight glass Abr
Sight Glass 140 bar
AWA sight glasses come with screwed, welded, soldered and Rotalock connections of different versions. Our fittings and adapters are used to join dissimilar connections. It is thus possible to easily charge refrigeration systems of different types – by using our service valves.
Sight glass Abr 3
Sight Glass : Solder sight glass from 1/4" to 2.1/8" for all types of Freon's
Sight Glass : Threaded sight glass from 1/4" to 3/4" for all types of Freon's
Sight Glass : Saddle sight glass from 5/8" to 2.1/8" for all types of Freon's
Sight Glass : Solder sight glass from 3/8" to 1./8" for R744 (copper connections) /  from 10 mm to 28 mm for R744 (stainless steel connections)
Moisture Liquid Indicator : Solder moisture liquid indicator from 1/4" to 2.1/8" for all types of Freon's
Moisture Liquid Indicator : Threaded moisture liquid indicator from 1/4" to 3/4" for all types of Freon's
Moisture Liquid Indicator : Saddle moisture liquid indicator from 5/8" to 2.1/8" for all types of Freon's
Sight Glass : biflow sight glass 140 bar
Sight Glass :sight glass 140 bar with metric thread
Sight Glass :sight glass 140 bar with NPT thread
Sight Glass : unidirectional sight glass 140 bar
