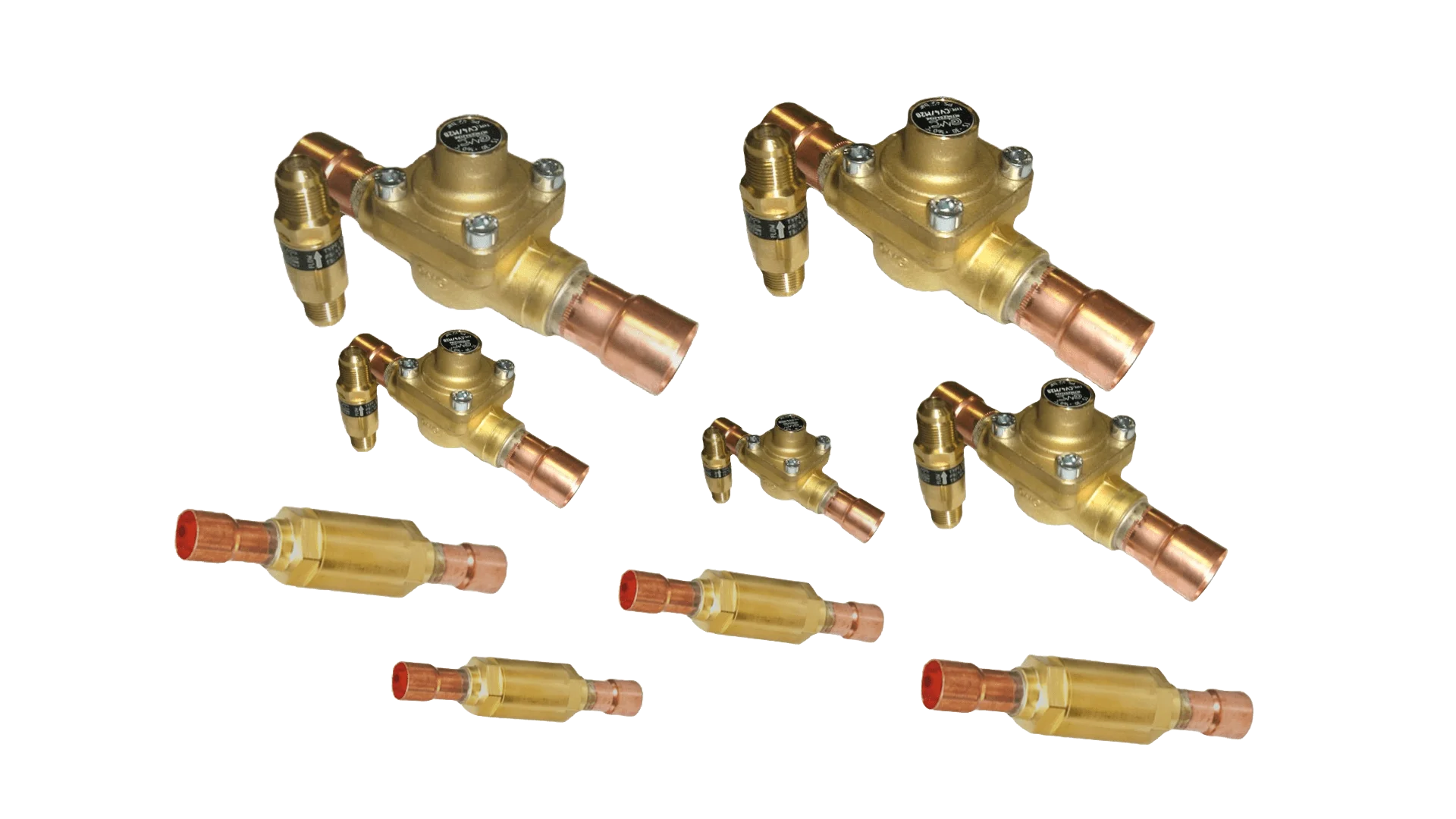

Check Valves
Check valves are designed for installation in commercial refrigeration systems and civil or industrial air conditioning systems that use Group II fluids, as defined in Article 9, Section 2.2 of Directive 97/23/EC, meaning they are non-toxic, non-flammable, and non-explosive.
Check valves are also suitable for use with refrigerants listed and classified as L1 in Annex E of EN 378-1:2011, which belong to Group II. The special construction of these valves allows for their application in challenging temperature conditions, such as on the compressor discharge line.

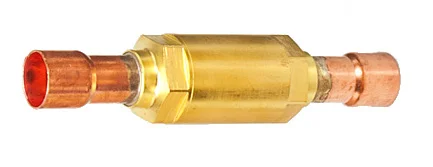

In-line Check Valves
- Minimum temperature: -50°C
- Maximum temperature: +110°C
- Maximum working pressure: 45 Bar
- Compatible with all refrigerants
- Minimum pressure differential: 0.03 bar for the reinforced spring version
Flanged Check Valves
- Minimum temperature: -35°C
- Maximum temperature: +160°C
- Maximum working pressure: 45 Bar
- Compatible with all refrigerants
- Minimum pressure differential: 0.03 bar for the reinforced spring version
62 Bar In-line Check Valve
- Minimum temperature: -40°C
- Maximum temperature: +130°C
- Maximum working pressure: 62 Bar
- Valve specifically designed for CO2 R744
140 Bar In-line Check Valve
- Minimum temperature: -60°C
- Maximum temperature: +140°C
- Maximum working pressure: 140 Bar
- Valve specifically designed for CO2 R744
